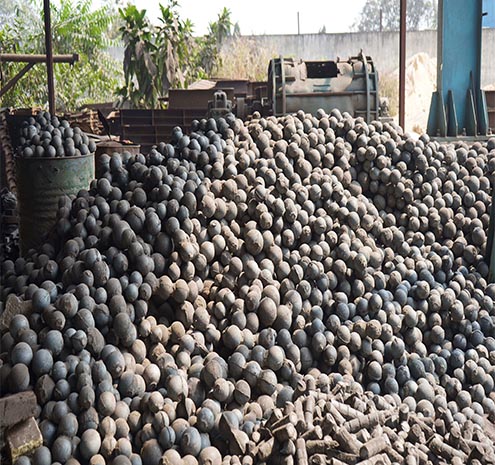

Grinding Media Balls

We are manufacturer of hyper steel and high-chrome steel grinding media in various alloy compositions and sizes. Grinding media are used in ball mills to grind the material to required fineness. Grinding media is available in various hardness ranges for different application, in both high carbon steel and chrome alloy steel. Grinding media are always consumed in a large quantity, cost and wear rate become the most important aspect to choose the size and quality. We are manufacturing cost effective grinding media for many years and are now able to provide grinding media with very low wear rate in the market. We manufacture grinding media in various sizes and shapes to suit different needs. Our time tested heat treating processes gives a much better durability. We also develop custom made grinding media as per the needs of customer.

Advantages of Hyper Steel/ High Chrome Grinding Media

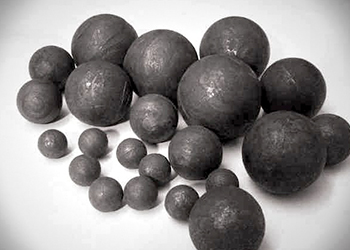

Hyper steel Grinding Media Balls and Cylpebs as per IS 6079-1989

CHEMICAL COMPOSITION: The chemical composition of the grinding media will be as per IS 6079-1989: as follows:

GRADE-1 (For size 60 mm & above) GRADE-2 (For size below 60 mm)
Carbon
1.25 – 1.50
1.60 – 1.90
Silicon
1.00 Max.
1.00 Max.
Manganese
1.20 – 1.50
1.20 – 1.50
Chromium
1.50 – 2.00
1.50 – 2.00
Sulphur
0.06 Max.
0.06 Max.
Phosphorus
0.06 Max.
0.06 Max.

HARDNESS: tested in accordance with IS 1500/1983 the hardness at any point across the section of the ball is more than 375 BHN

HEAT TREATMENT: The grinding media is suitably heat treated to obtain the required hardness and Microstructure.

MICROSTRUCTURE: Microstructure shall be free from continuous carbide network.

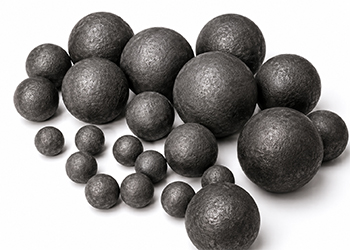

High chrome steel Grinding Media Balls and Cylpebs

Working conditions Low abrasion Low abrasion High abrasion High abrasion High abrasion High abrasion
Application
First Chamber cement & raw mill
First Chamber of cement & raw mill
First Chamber of cement & raw mill
Chamber Second Chamber of cement, raw mill & coal mill
Chamber Second Chamber of cement, raw mill & coal mill
Chamber Second Chamber of cement, raw mill & coal mill
Hardness
58 – 62
60 – 64
61 – 65
59 – 64
60 – 65
60 – 65
Cr %
14 – 18
14 – 18
18 – 22
10 – 14
11 – 15
16 – 20
C %
2.0 – 3.0
2.0 – 3.0
2.5 – 3.5
2.5 – 3.5
2.0 – 3.0
2.0 – 3.0
Wear resistant
Good
Good
Excellent
Excellent
Excellent
Excellent

We also manufacture High Chrome Grinding media as per customer’s specification.

Size of Grinding Media manufactured by us:
Balls diameter (mm): 100.90,80,75,70,60,50.40.30.25. & 20
Cylpebs (mm): 35×35. 30×30, 25×25,20×20

Ball mill liners and Diaphragm plates for ball mills

We manufacture ball mill internals for ball mills. Liners and Diaphragm both in High Manganese Steel and High Chrome is being manufactured by us.

Chemical composition of High Manganese Liners and Diaphragm:

CHEMICAL IS 276:2000 Gr III
Carbon
1.05% to 1.35%
Manganese
11% TO 14%
Chromium
1.5% TO 2.5%
Silicon
1.0% Max
Sulphur
.06% Max
Phosphorus
.06% Max
Hardness
229 BHN

Chemical composition of High Chrome Liners and Diaphragm:

CHEMICAL As per Customers requirement
Carbon
2% to 3.5%
Chromium
12% to 28%
Manganese
1.5% TO 2.5%
Silicon
2.0% Max
Sulphur
.06% Max
Phosphorus
.06% Max
Hardness
Upto 65 HRC
